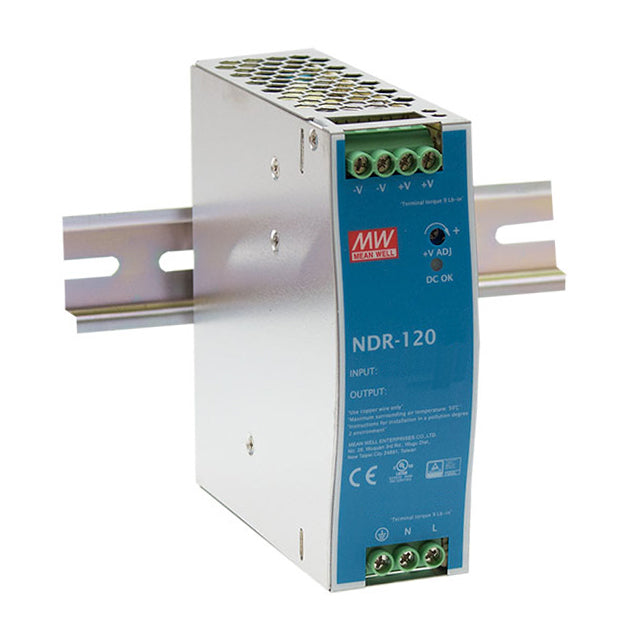

Wi-Tek NDR-120-48 Industrial 48V/120W Power Supply

The Wi-Tek NDR-120-48 is a robust industrial-grade DIN rail power supply designed for demanding environments. Featuring a universal full-range AC input and a stable 48V DC output at 120W, this power supply ensures reliable and efficient power delivery for industrial control equipment.

Key Specifications:

• Input Voltage: 90V ~ 264V AC (Universal full-range)

• Output: 48V DC / 2.5A, 120W single output

• Operating Temperature: -20°C to +70°C

• Cooling: Free air convection cooling (fanless)

• Protection: Comprehensive safeguards including short-circuit, overload, over-voltage, and over-temperature protection

• Mounting: DIN rail mounting on TS-35/7.5 or 15 rails

• Dimensions: 40 mm (W) x 125 mm (H) x 114 mm (D)

• Certifications: UL 508 approved for industrial control equipment, compliant with EN61000-6-2 (industrial immunity), RoHS, TUV EN 60950-1

Designed to meet the rigorous demands of industrial applications, the NDR-120-48 delivers consistent performance with high reliability and safety.
